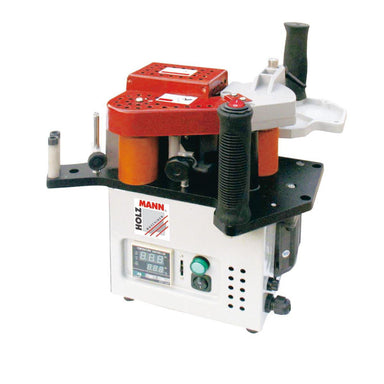

The Holzmann KAM55V is a compact and portable edge banding machine designed for precise application of PVC, ABS, melamine, or wooden edge materials on straight or curved surfaces. With a 765W motor, adjustable temperature range of 120–180°C, and feed speed between 0.3–3 m/min, it accommodates edge thicknesses from 0.3 to 3 mm and widths from 10 to 55 mm. Its lightweight design (8.5 kg) and included accessories, such as a fixing table and trimmers, make it ideal for both workshop and on-site use.

can be used for round cambered or straight works up to a min. edging radius of 20mm
temperature infinitely adjustable from 120? up to 180?,
can be used for PVC-, ABS-, melamine or wooden
edge material
easy refill of the glue granulate
ideal for transportation and mobile use
easy handling and operation
delivered in a metal case with wheels and handle to move

included in delivery:?fixing table, end trimmer, double edge trimmer, toolings, 2pcs vacuum-double work piece holder, metal case

KAM55V Bench top edge bander + straight & curved edges + adjustable temperature + suitable for PVC-ABS-Melamine-wood + metal case & castors + accys + 765W (S1) motor 230v

Additional information

Weight	13 kg
Area of use	Woodworking
Purpose	Edge Banding

Technical Details

Motor Power	765W
Feed Speed	0,3-3
Edge Thickness	0,3-3mm
Edge Width	10-55mm
Working Temp	120-180 °C
Min Curve Radius	20mm
Gross Weight	8.50kg
Ean Code	9120039909042

Edge Banding Machine

Holzmann KAM55V Edge banding machine
